High Power Small Chassis Amplification

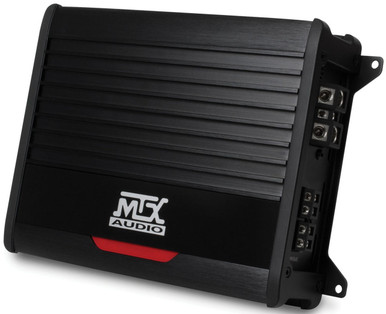

THUNDER500.1 500W RMS Mono Block Class D Amplifier
Feel the Thunder
MTX THUNDER500.1 is designed to work with an assortment of subwoofers and is capable of delivering up to 1000 watts peak power (500 watts RMS) in an incredibly small package. This monster amp features a high efficiency class D topology. This type of circuit is preferred for driving subwoofers due to its ability to minimize power loss to heat when you rock all night long.
High Power High Value
The THUNDER500.1 is a high powered subwoofer amplifier capable of delivering up to 500 watts RMS power at 2Ω. Additionally, the unit is designed to be installed in almost any vehicle due to its small chassis size.
The THUNDER500.1 features surface mount technology. This design uses smaller more efficient parts that adhere to the circuit board much better than traditional through hole designs making it extremely vibration resistant.
The control panel on the THUNDER500.1 is easy to access and make adjustments. The unit includes a variable low pass filter and a selectable bass boost, 0, +6, or +12dB. The unit also features a subsonic filter that can be used in conjunction with a vented enclosure for optimal sound quality.
The THUNDER500.1 uses set screw type connections for both its power and speaker terminals. The power and ground inputs will support up to a 4 AWG wire and the speaker inputs can support up to a 12 AWG wire. Set screw type connectors provide the most secure connection minimizing power loss and delivering all the power to the amplifier and to the speakers.
- Small Footprint
- Selectable Bass Boost: 0, 6, or 12dB
- Surface Mount PCB Design
- Variable Butterworth Crossover 12dB/Oct
- Variable Subsonic Filter
- Thermal, DC Offset, and Short Circuit Protection Circuitry
- Extruded Aluminum Heat Sink
|RMS Power (Watts)||500|
|4 Ohm RMS Power Output||300W x 1 Channel|
|Signal to Noise Ratio||80dB|
|2 Ohm RMS Power Output||500W x 1 Channel|
|1 Ohm RMS Power Output||NA|
|Frequency Response||10Hz - 220Hz|
|Crossover||Variable Low @ 40Hz to 220Hz 12dB/Oct|
|Subsonic Filter||10Hz to 50Hz 12dB/Oct Variable|
|Bass Boost||0 6 12dB Switchable|
|Maximum Input Signal||5V|
