HD-M6

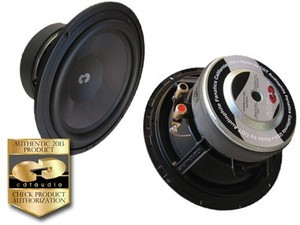

6.5" HD-M6 CDT Audio High Definition Mid-Bass Enhanced Woofer Pair

The M6 (cast alloy red frame) has a more massive voice coil than typical bass/midrange and leans toward the bass in the sound compared to the standard high-end mid drivers. The upper midrange is somewhat mellower than standard high-end mids which creates a very very smooth and balanced non-fatiguing sound with an extension in the bass region never heard of before from a 6.5 mid driver. M6 is designed to handle about double the power compared to any industry standard high-end 6.5 mid-woofer. 150 Watt RMS 300 Watt Peak.

6.5" HD-M6 CDT Audio High Definition Mid-Bass Enhanced Woofer Pair

The HD-M6 6.7” Enhanced Mid-Bass (cast frame) woofer has a slightly more massive voice coil than typical bass/midrange and leans toward the bass in the sound compared to the classic type woofer. The upper midrange is mellower than the standard type 6.5” mid-woofer designs.

These fabulously smooth, mixed fiberglass fabric black coned beauties extract all the music and add no coloration to that sound. From rap to rock to smooth jazz they are on top, and the rendering of serious classical profundities is also exquisite. Utilizing a rubber edge and soft polymer dust-cap these drivers create and absorb vibratory waves with astonishing control.

The carbon reinforced mix-fabric paper cones offer ideal stiffness and damping. The curvilinear cone shape prevents cone flex and break up. This provides clean mid-bass even at higher levels. The always-critical midrange frequencies are clear and precise with no distortion from "ringing." The midrange driver use real butyl surrounds, not merely a mixed butyl compound. This provides longer, more linear excursion, and a far longer life because it's UV resistant.



TECHNICAL SPECS & DETAILS
1 pr 6.7” Extended-mid bass woofer

Frequency response 10Hz-4000Hz

Power handling:150WRMS (300Watt Pk).

Impedance 4 Ohm

Sensitivity:88.1dB

Mounting depth: 2.94”

Cutout diameter: 5.87”

Cast frame: OD 6.7”

Cone: Mix/Kevlar/Fiber glass

Magnet weight 30 Oz

Cone surround Buytal rubber

Impedance: 3.8 Ohm

Fs: 52Hz
