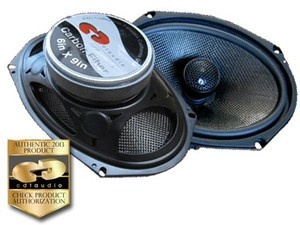

6x9 HD-690CFX.2 CDT Audio Carbon Fiber Coaxial Speakers

The HD-690CFX.2 6X9” coaxial speaker is designed and built for the unique demands of the car audio environment. They are built to deliver the truest, in-car sound possible, the most accurate and natural performance ever-the type of performance that has earned our design team countless awards and unanimous praise from around the world.

6x9 HD-690CFX.2 CDT Audio Carbon Fiber Coaxial Speakers


The HD-690CFX.2 6X9” coaxial speaker is designed and built for the unique demands of the car audio environment. They are built to deliver the truest, in-car sound possible, the most accurate and natural performance ever-the type of performance that has earned our design team countless awards and unanimous praise from around the world.

Smooth and accurate highs. Our exclusive use of soft dome Tweeters combine to deliver superb detail and incredible clarity. The 6X9” woofer is smooth with a fast deep clean sound into the lowest bass frequencies. ring design goal for this system is to deliver optimum high-definition sound quality with easy installation at an affordable price

Technical specs and contents

• 1 pr 6X9" carbon fiber coaxial speaker
• Frequency response: 30Hz-20.000Hz
• Power handling: 200WRMS
• Impedance: 2 Ohm
• Sensitivity: 90.6 dB
• Dimensions: 6.625"X 9.25"
• Ellipse (168.3mm X 235mm)
• Ellipse (Exclusive of mounting tabs)6" X 8.625"
• Ellipse (152.4mm X 219mm)
• Ellipse Free Air use mount in rear deck, large door or panel
• Mounting depth: 3.5"
• Cone: carbon fiber
• Magnet weight 30 Oz
• Cone surround Buytal rubber
• Voice coil: 2.0"
