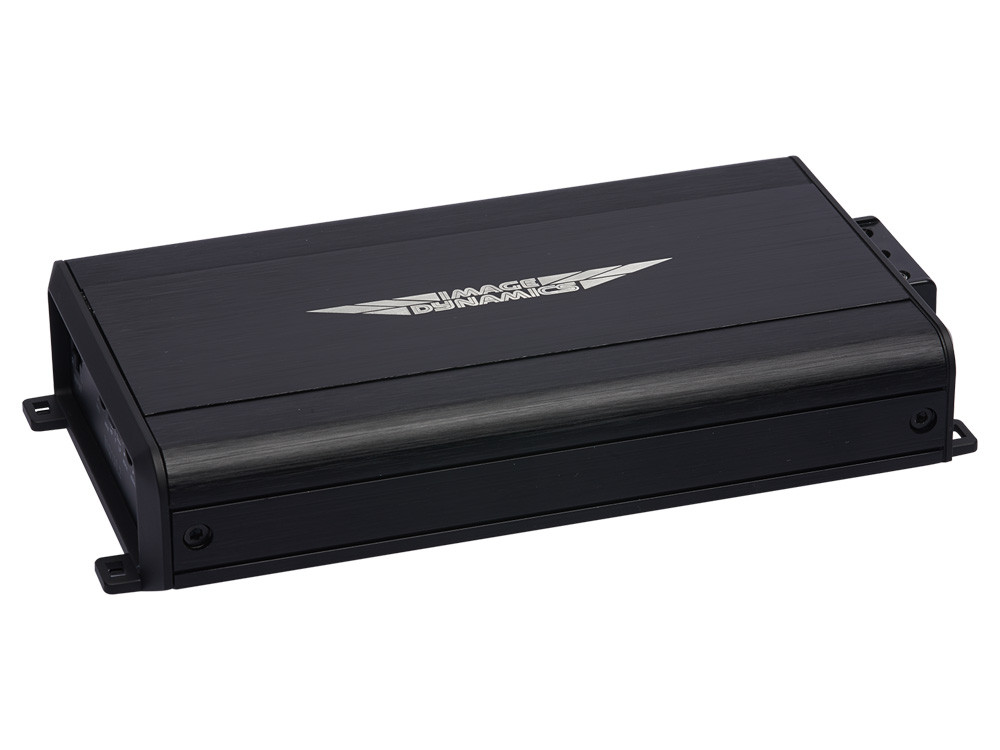

MQ150.2 Image Dynamics 2 Channel Class D Full Range Amplifier

Introducing the new MQ Series mini amplifier. The MQ series amplifier is a combination of detailed
musical performance with impressive power and dynamics in a compact chassis. It utilizes the finest available
electronics for outstanding sound quality and reliability.

• 2-Channel Class D Full RangeCar Amplifier
• RMS Power Rating:
  • 4 ohms: 75 watts x 2 chan.
  • 2 ohms: 125 watts x 2 chan.
  • Bridged, 4 ohms: 250 watts x 1 chan.
• CEA Power Rating @ 14.4V:Pulse Width Modulated MOSFET power supply
• 2/1 Channel operation
• 3-Way System Protection circuitry (thermal, DC, and speaker short protection)
• Input sensitivity: 250MV-7.3V
• Crossover Slope: 12 dB
• THD (Total Harmonic Distortion): 0.3%
• Frequency Response: 10-42,000 Hz
• Signal-to-Noise Ratio: >85 dB
• Dimensions: 7.2" x 4.1" x 1.4"
• 1-year Manufacturer's Warranty

.
